obtained by the laser and the muons
Here we show a few plots comparing some distributions obtained with the t0s from the laser and the muons (see more information here and here).
It can be seen that the distributions are very similar. In particular,
the measured distributions of background versus the zenith and phi
angle do no changes, which makes that the SGR analysis is not affected.

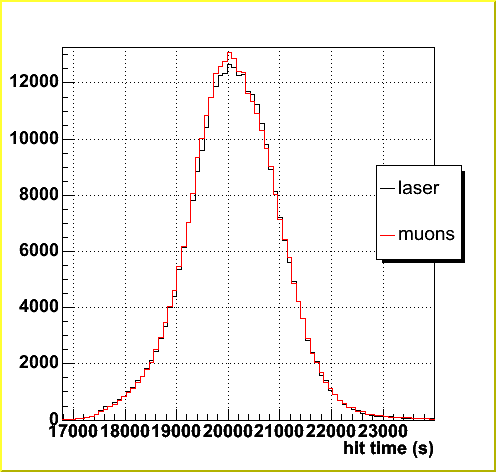

- Times of the hits selected by HitSel3 (see the definition in the steering file):

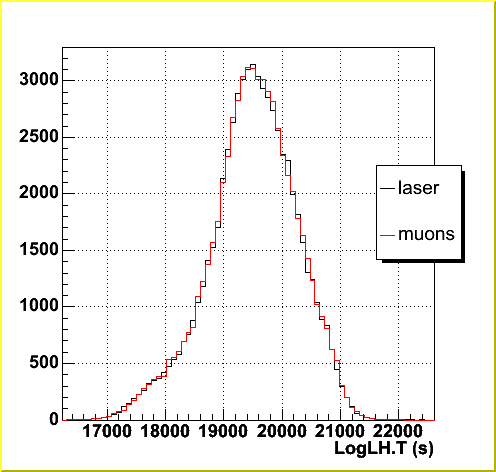

- Recontructed time for the track with the iterative LogLH:

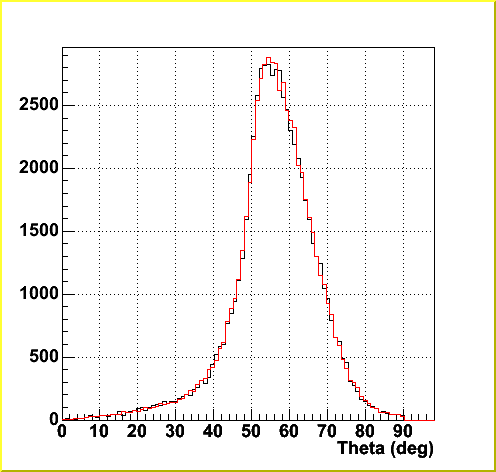

- Zenith angle distribution reconstucted with the iterative LogLH:

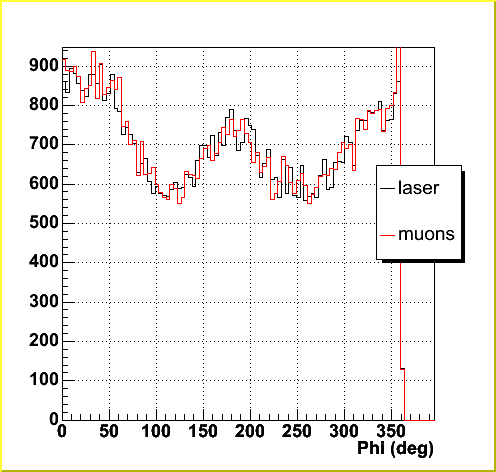

- Phi angle distribution reconstucted with the iterative LogLH:

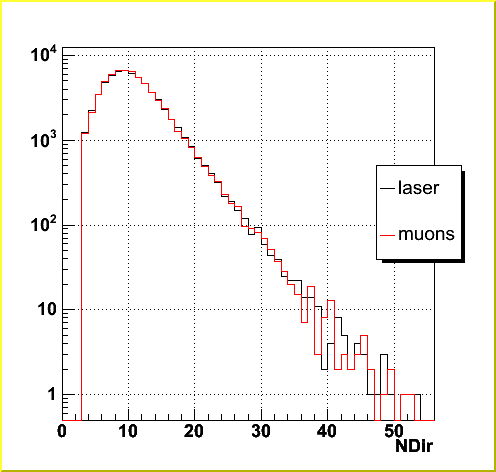

- Number of direct hits:
