Introduction
We present in these pages the proposal
for the unblinding of the IC9 data for the unfolding on the atmospheric
neutrino spectrum. The structure of this site is as follows:
- Motivation
- Single Value Decomposition algorithm
- Selection of variable for unfolding
- Monte Carlo samples
- Quality cuts
- Processing
- Comparison between Monte Carlo and data
- Robustness checks
- Results
- Unblinding proposal
Motivation
The atmospheric neutrino spectrum is one of the basic measurements of
neutrino telescopes. Apart from the intrinsec interest for the study of
atmospheric neutrino studies, it is also fundamental for understanding
the background for other analysis, in particular point-like source
search. The first analysis of the atmospheric atmospheric spectrum with
IC9 data was done by J. Pretz, who showed that the behaviour of the
detector is understood. In J. Pretz analysis event rates and zenith
distributions were studied, but not the energy spectrum of the
atmospheric neutrinos.
The aim of this analysis is to reconstruct the energy spectrum of
atmospheric neutrinos using unfolding techniques. The need for
unfolding algorithms comes from the fact that the reconstruction of the
spectrum using the individual energy of the events is impaired by the
combination of two features of this problem. First, the energy
resolution is limited, since the energy loss of the muon is very
stochastic (and moreover only part of the muon energy is observable,
which is turn is only part of the neutrino energy). Second, the
spectrum falls very fast. Therefore, the low-energy events for which
the energy is overestimated "bury" the regions at higher energies. The
way to avoid this problem is to use unfolding algorithms, as it has
been previously made in AMANDA (cf H. Geneen or K. Muenich works).
go up
Single Value Decomposition
method
There are several methods unfolding methods commonly used in
high-energy physics. Among them we can metion RUN (Blobel), Bayesian
(D'Agostini) and SVD (Hoecker). For this analysis, we have used the
latter, easy to implement and quite efficient.
The problem of unfolding consist in solving the Freholm integral
equation of first kind which relates the some measured quantity with
the energy:
In matrix notations, this
reads as:
where A is the so-called
"smearing-matrix", which has to be generated by Monte Carlo. Aparently,
the solution of the system only requires the inversion of the smearing
matrix, but this leads to useless solutions, since the effect of
statistical fluctuations spoils completely the solution. Therefore, an
alternative approach has to be followed, which basically implies to
impose in the system the reasonable assumption that the shape of the
spectrum is smooth.
The SVD method (Singular Value Decompostion) is based on the idea of
decomposing the smearing matrix as
where U and V are orthogonal
matrices and S is a non-negative diagonal matrix whose diagonal
elements are called "singular values". It can be showed that this
decomposition allows to identify easily the elements of the system that
contribute to the statiscal fluctuations, but do not provide useful
information. There
mation. Therefore, we can cut off
these elements in order to reduce the effect of such fluctuations.
Another interesting point of this method is that in practice we do not
try to solve directly the spectrum, but the deviation from a reasonable
assumption. This also helps to reduce the effect of the statisctical
fluctuations, since the solution is expected to be smooth (ideally flat
and close to the unit) if the initial assumption is close enough to the
real solution.
go up
Unfolding variables
The first issue for this analysis is to determine which is the best
observable for unfolding. Obviously, it has to be a variable which has
a good correlation with the neutrino energy, i.e. dependence as linear
as possible and small spread. We have considered several possibilities:
total charge in the detector, number of hit DOMs, number of DOMs with
one hit, reconstructed energy. In the following we show how to compare
the quality of different variables for unfolding. In particular, we
show the results for the best two cases: the total charge measured in
the detector and the muon energy at the point of closest approach as
reconstructed by RIME (developed by Dima Chirkin).

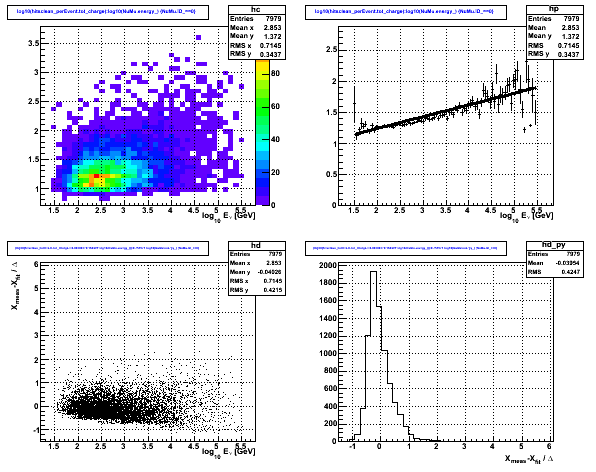

The information in the plots above is the following:
1) upper left: "colz" plot of log10 of the charge versus log10 of the
primary neutrino energy.
2) upper right: we contruct the profile plot of the previous one (i.e.
we represent the mean in each vertical slice) and fit it to a straight
line. We are are interested in the deviations with respect to such
parametrization, but it as to be scaled in order to be able to compare
different magnitudes. Therefore, we calculate a variable called "delta"
as the difference between the fitting function at 10^5.5 and 10^1.5 GeV.
3) We show the scatter plot of the difference between the value of
log10 (charge) and the actual fited straight line, divided by the value
of delta calculated previously.
4) Finally, we project on the left axis in order to get the histogram
of such scaled deviations. The RMS of this histograms should be as low
as possible, and allows the comparison among different magnitudes.

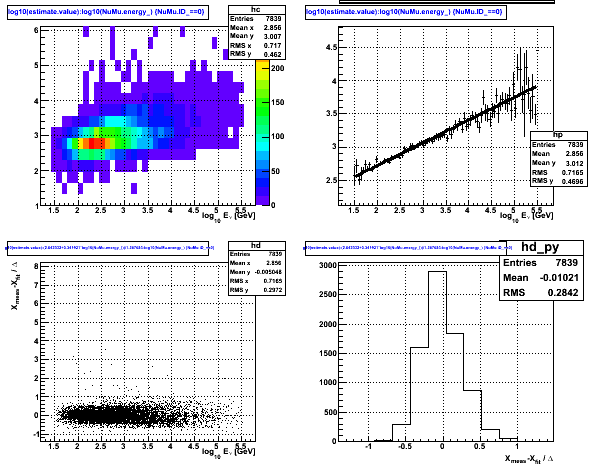

We repeat this process for the energy estimated by RIME:
The behaviour of the energy
is clearly better than for the total charge, as shown in the table
below. This is actually what we could expect, since the reconstructed
energy, even if it is only part of the energy of the muon (which in
turn is only part of the primary energy of the neutrino, as any other
possible variable), uses also the information of the position of the
track which allows to distinguish between close low-energy tracks and
far high-energy tracks.
variable
|
RMS
|
log10(charge)
|
0.42
|
log10(RIME
energy)
|
0.28
|
A more detailed description
of the RIME algorithm and its estimation of the energy can be found in
Dima's talks.
go up
Monte Carlo sample
The information about the Monte Carlo samples that have been used for
this analys is summarized here:
|
dataset (events)
|
corsika
|
296
(1000x10^6)
|
coincident muons
|
394
(3000x10^6)
|
| nugen_numu |
437
(50x10^6)
|
Note that run 437 was generated with E-2 spectrum instead of E-1, so
that we do not generate many events at high energies that we are not
going to use. The number of events above 10^5.5 GeV for IC9 during 6
months is negligible, so it is more efficient to generate with E-2. In

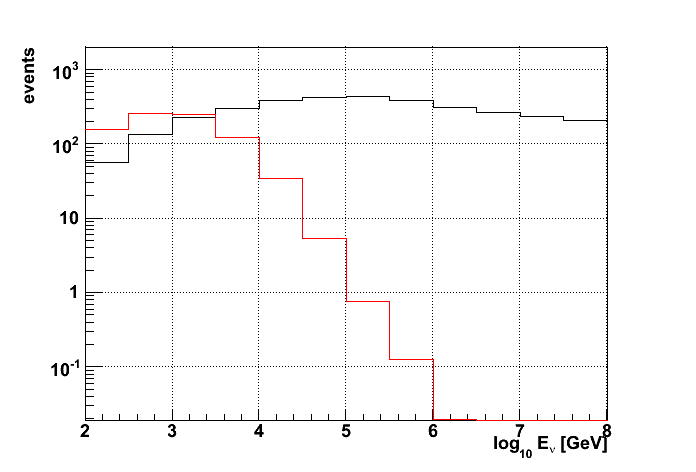

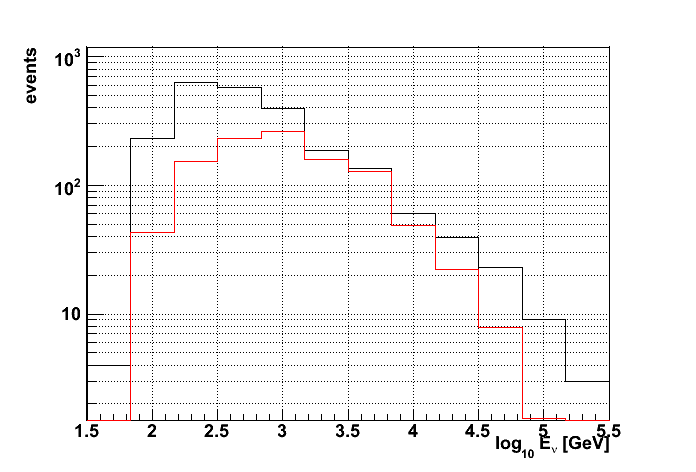

the two plots below we compare the number of events generated and the
expected (in 6 months) for E-1 (left) and E-2 (rigth) (note that the
energy limits are also different!):
|
gamma=-1
|
|
gamma=-2
 |
go up
Quality Cuts
The quality cuts used in this analysis are based on the cuts chosen by
J. Pretz in his analysis of neutrino rates. The variables that are used
are the same and the actual cut values have been relaxed to increase
the statistics:
Variable
|
Cut
|
Ndir
|
>=
8
|
Ldir
|
>
200 m
|
Theta
|
>
92 deg
|
A cut in Nchan<46 is also applied in order to keep blinded the
high-energy events.

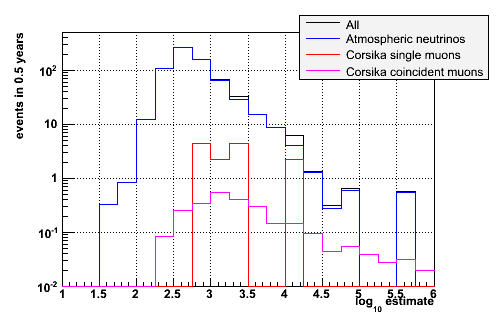

In order to check the effect of this on the background, we
compare in the following plot the expected number of events of signal,
corsika events and coincident muons, versus energy estimated by RIME:
At this level of cuts the purity is 98%, with 671 atmospheric neutrino
events, 13 corsika events and 2.6 coincident muons. In each bin the
background contamination is of the order of (or much lower) than the
expected number of atmospheric neutrinos, so the shape of the spectrum
is not modified.
go up
Processing
The script used for the processing of the events can be seen here.
The main steps of this process are:
- Cleaning of the bad DOMs
- Feature extractor processing
- RIME reconstruction to estimate the energy at point
of closest approach
- Linefit reconstruction
- LLH reconstruction fed by Linefit solution
go up
Comparison of Monte Carlo vs
Data

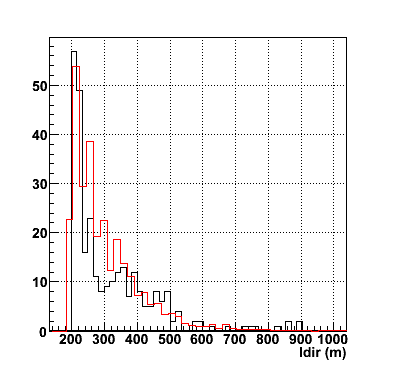

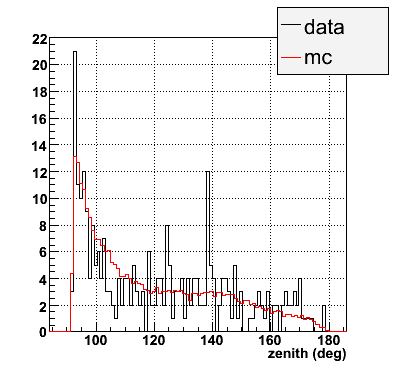

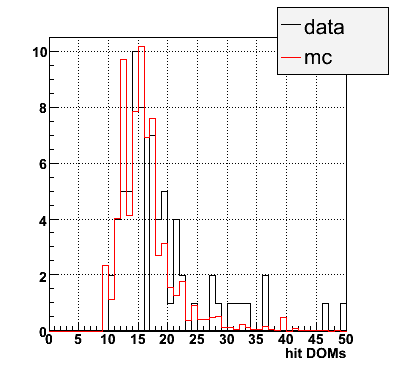

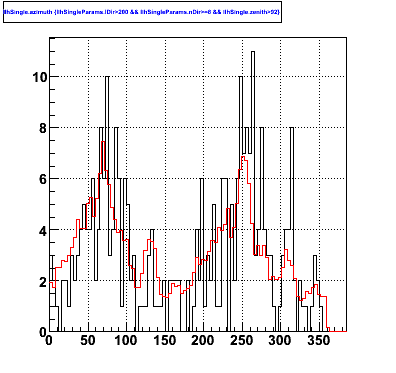

The following plots show a comparison between data and Monte Carlo at
the level of the cuts used in this analysis. It can be seen that the
agreement is good.
go up
Robustness checks
There are two elements whose impact in the robustness has to be
checked: the choice of the spectral index for generating the smearing
matrix and the initial guess on the shape of the spectrum. As mentioned
before, the smearing matrix is generated with a spectral index
gamma=-2. This is well different enough from the actual shape of the
atmoshperic spectrum. Therefore, the main issue to check is the
stability against uncertainties for the choice of the inital guess. As
it has been metioned before, this guess is used in order to make more
effective the method, since the spectrum to recontruct is the deviation
from this assumption.

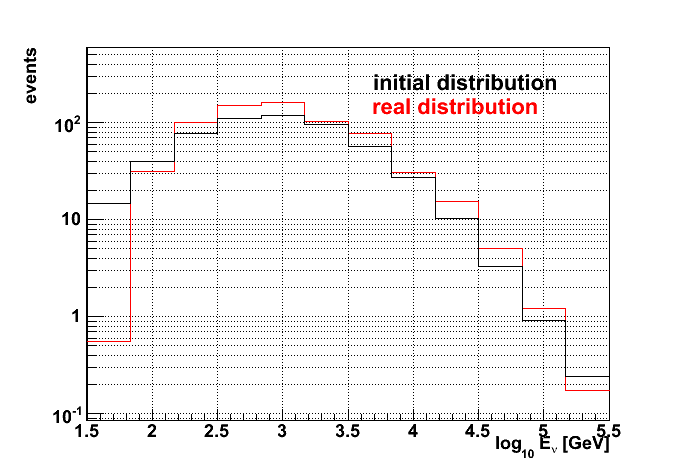

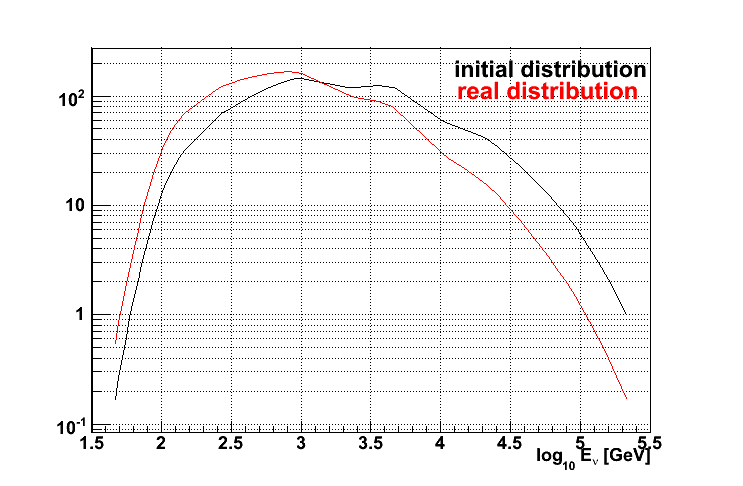

We show two different cases. First, a function which is similar
to what we expect from our best knowledge of the atmospheric neutrino
spectrum. The second plot shows a more difficult case, in which we have
constructed a function which deviates more from the expected solution
(both at low and high energies), to show that the result converges
towards the real input.

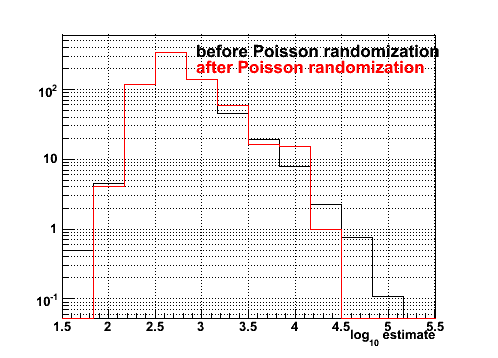

The input for the algorithm is the distribution of energy estimator. We
use the Monte Carlo generation to estimate the average number in each
bin, and then we randomize Poissonly in order to have a sample
corresponding to six months.
go up
Results
The results for both cases are shown below:
It can be seen that in both cases the true distribution is well
reconstructed. We can also show the differences between the true and
unfolded distributions, compared with the 1-sigma and 2-sigma
regions.
go up
Unblinding proposal
In the previous sections we have shown that the proposed cuts offer a
good compromise between number of events available for the unfolding
and minimum contamination from background. It has also be shown that
there is a good agreement between data and MC at this level of quality
cuts. We have also checked that the algorithm proposed for the
unfolding is robust and efficient in the spectrum reconstruction.
go up
|
|
|
