Flarechecking Cuts 2003


Home

Key for plot colors:
Purple: Removed by cut 1 (Induc_b10)
Blue: Removed by cut 2 (Induc_11)
Green: Removed by cut 3 (Missing)
Black: Surviving all 3 cuts

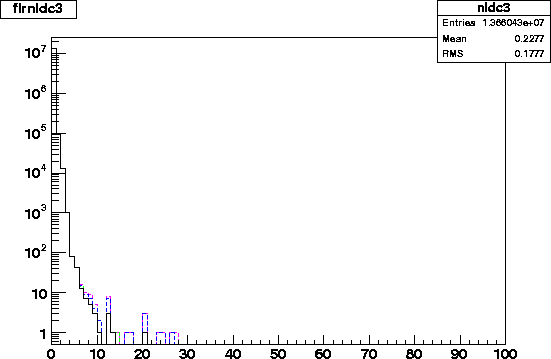

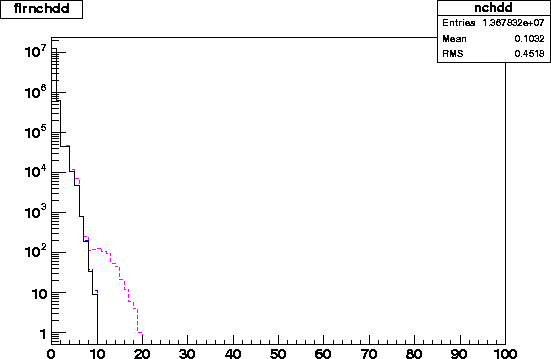

The variables Nchannel dead (nchdd) and Only ADC (nldc3) still show non-exponential distributions after this first round of cuts, but the extended flarechecking cuts remove large flarechecking variable values from these distributions.

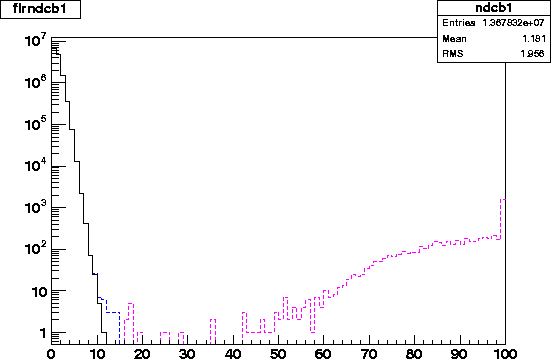

CUT 1: Induc_b10 < 16

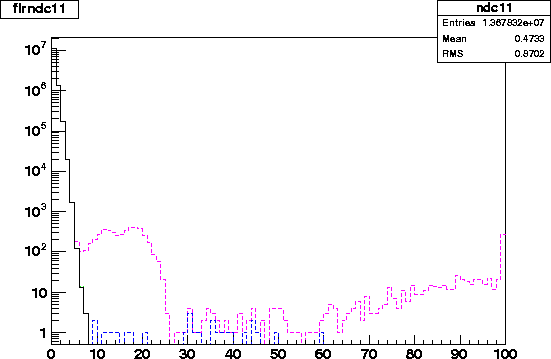

CUT 2:  Induc_11 <  8

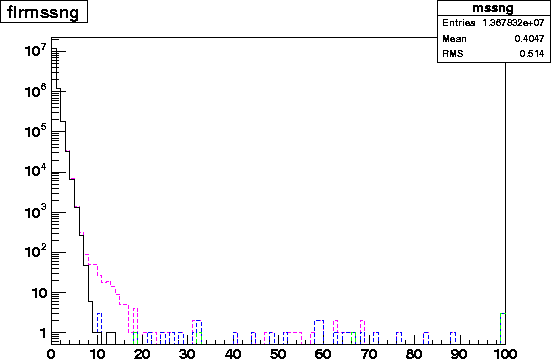

CUT 3:  Missing < 14

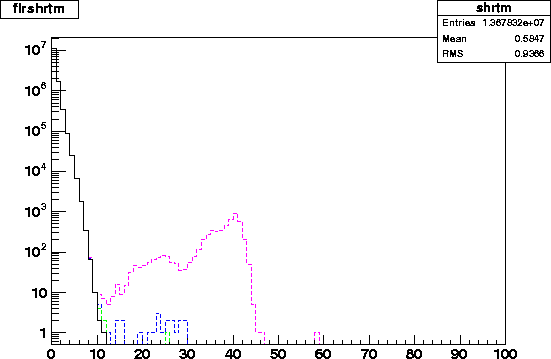

Other Flarechecking Variables

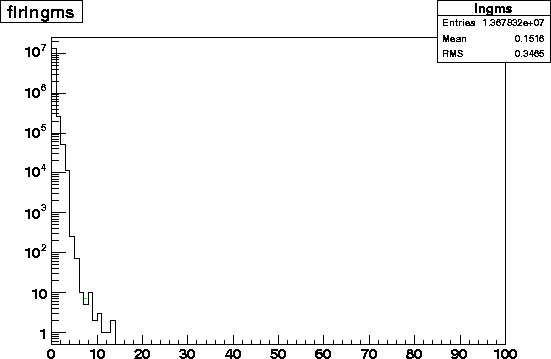

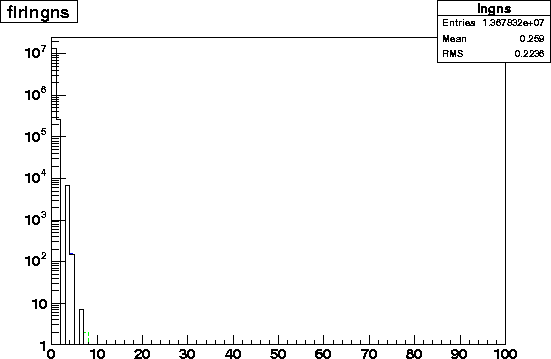

flrlngms.2003.4level.gif    flrlngns.2003.4level.gif

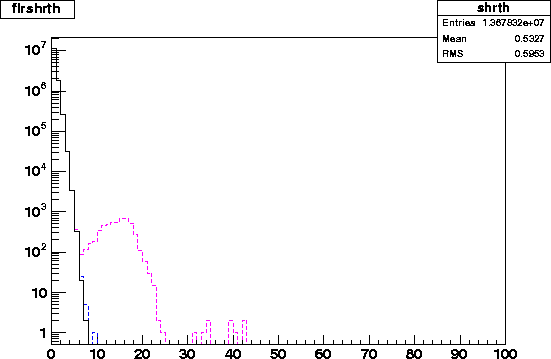

flrnchdd.2003.4level.gif    flrshrth.2003.4level.gif
