XXJJ-CCP Face View
The Dark Freezer Lab Working Documents
Nobuyoshi Kitamura
Facility Drawings
Electrical Wiring
Wiring diagram (in progress, 2/18/2004)
Wiring and distribution box drawing (AK, 10/27/2003)
NK's presentation at Madison Workshop (12/2003)
Shielded Cable
Seacon Connectors
|

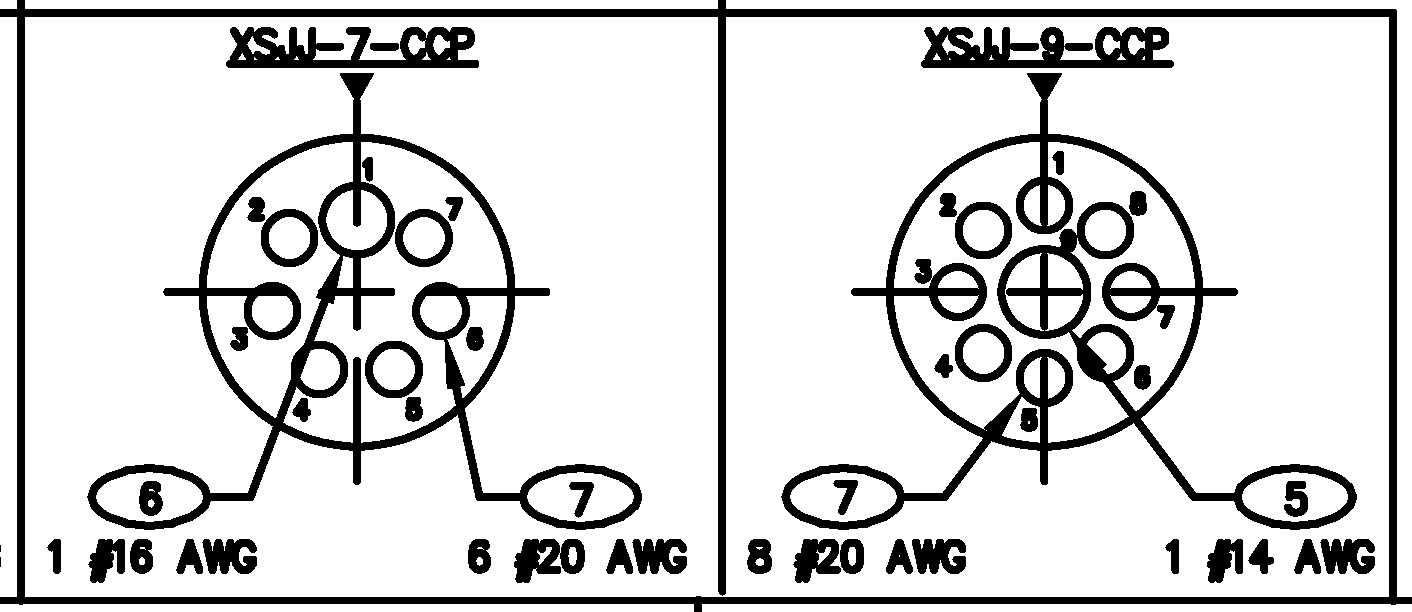

XXJJ-CCP Face View |
|
Panel mount adapter for the Seacon Connector
| Drawing | Drawing | Photo |
Rack-Mount Filter Box
DFL/filterbox/Visio-FilterBox.pdf (19" front panel)
The box will house sixteen filters (eight quad cables). Eight DB-9 connectors on front and on back.
Connection inside the filter box: DFL/filterbox/Visio-DFL_DB9_FLT.pdf
The DOR Card Connection
A DB-9 male connector is needed for each quad cable connected to the DOR card. The screws for securing the connector to the card is English #4-40.
The DB-9 connector wiring diagram
NK's presentation and other notes
